数据集格式：Pascal VOC格式+YOLO格式(不包含分割路径的txt文件，仅仅包含jpg图片以及对应的VOC格式xml文件和yolo格式txt文件)

图片数量(jpg文件个数)：6042

标注数量(xml文件个数)：6042

标注数量(txt文件个数)：6042

标注类别数：21

标注类别名称:["Arrester body","Arrester voltage equalizing ring","Breaker","Breaker connector","Breaker support insulator","Casing connector","Casing general hat","Casing porcelain sleeve","Casing pressure equalizing ring","Current transformer connector","Current transformer general cap","Current transformer head","Current transformer porcelain sleeve","Current transformer secondary tank","Current transformer voltage equalizing ring","Knife blade","Knife gate connector","Knife gate fixing pin","Knife gate support insulator","Voltage transformer body","Voltage transformer secondary tank"]

每个类别标注的框数：

Arrester body 框数 = 1291

Arrester voltage equalizing ring 框数 = 1274

Breaker 框数 = 1781

Breaker connector 框数 = 3264

Breaker support insulator 框数 = 1654

Casing connector 框数 = 493

Casing general hat 框数 = 538

Casing porcelain sleeve 框数 = 1287

Casing pressure equalizing ring 框数 = 762

Current transformer connector 框数 = 3337

Current transformer general cap 框数 = 722

Current transformer head 框数 = 1586

Current transformer porcelain sleeve 框数 = 1775

Current transformer secondary tank 框数 = 197

Current transformer voltage equalizing ring 框数 = 6

Knife blade 框数 = 1917

Knife gate connector 框数 = 3602

Knife gate fixing pin 框数 = 450

Knife gate support insulator 框数 = 3615

Voltage transformer body 框数 = 1391

Voltage transformer secondary tank 框数 = 1335

总框数：32277

使用标注工具：labelImg

标注规则：对类别进行画矩形框

重要说明：暂无

特别声明：本数据集不对训练的模型或者权重文件精度作任何保证，数据集只提供准确且合理标注

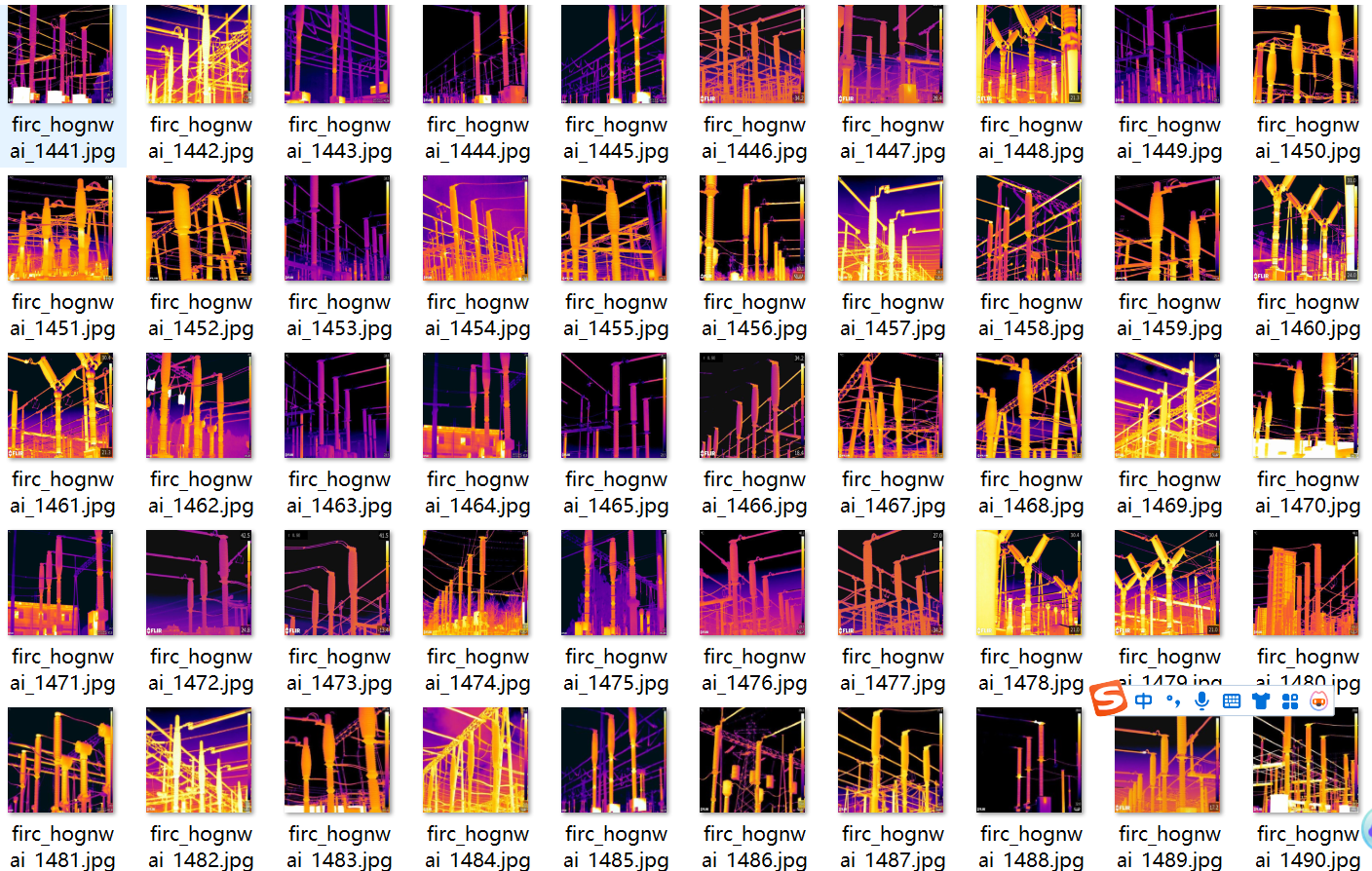

图片预览：

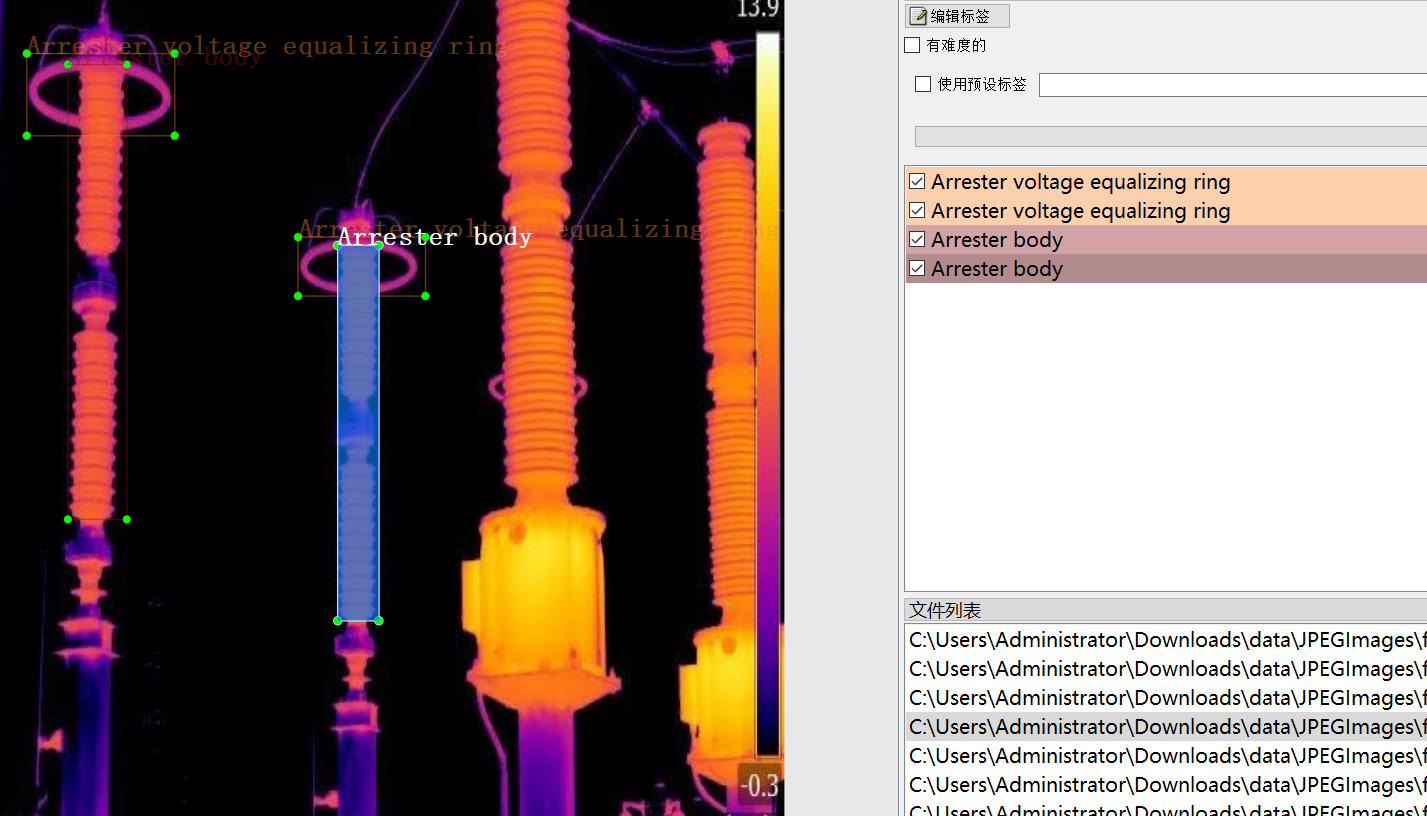

标注例子：
