数据集格式：labelme格式(不包含mask文件，仅仅包含jpg图片和对应的json文件)
图片数量(jpg文件个数)：1660
标注数量(json文件个数)：1660
标注类别数：15
标注类别名称:["bileiqi","bolipanxingjueyuanzi","chongheqi","cizhenshijueyuanzi","dianlibianyaqi","dianliuhuganqi","dianyahu ganqi","duanluqi","fenzhachuanliangelikaiguan","fenzhadaozhagelikaiguan","hezhachuanliangelikaiguan","hezhadaozhagelikaiguan","rongduanqigelikaiguan","sanligelikaiguan","xiaoshengqi"]
对应中文类别名：["避雷器", "玻璃盘形绝缘子", "重合器", "瓷针式绝缘子", "电力变压器", "电流互感器", "电压互感器", "断路器", "分闸串联隔离开关", "分闸刀闸隔离开关", "合闸串联隔离开关", "合闸刀闸隔离开关", "熔断器隔离开关", "三极隔离开关", "消声器"]
每个类别标注的框数和占有图片数：
bileiqi框数=1974,占有图片数=537
bolipanxingjueyuanzi框数=3180,占有图片数=739
chongheqi框数=2330,占有图片数=861
cizhenshijueyuanzi框数=26450,占有图片数=1413
dianlibianyaqi框数=768,占有图片数=406
dianliuhuganqi框数=2128,占有图片数=707
dianyahu ganqi框数=651,占有图片数=275
duanluqi框数=980,占有图片数=367
fenzhachuanliangelikaiguan框数=1596,占有图片数=243
fenzhadaozhagelikaiguan框数=308,占有图片数=84
hezhachuanliangelikaiguan框数=957,占有图片数=274
hezhadaozhagelikaiguan框数=5225,占有图片数=1066
rongduanqigelikaiguan框数=355,占有图片数=156
sanligelikaiguan框数=2348,占有图片数=231
xiaoshengqi框数=1354,占有图片数=197
总框数：50604
使用标注工具：labelme=5.5.0
所在github仓库：firc-dataset
图片分辨率：1920x2560
标注规则：对类别进行画多边形框polygon
重要说明：可以将数据集用labelme打开编辑，json数据集需自己转成mask或者yolo格式或者coco格式作语义分割或者实例分割
特别声明：本数据集不对训练的模型或者权重文件精度作任何保证

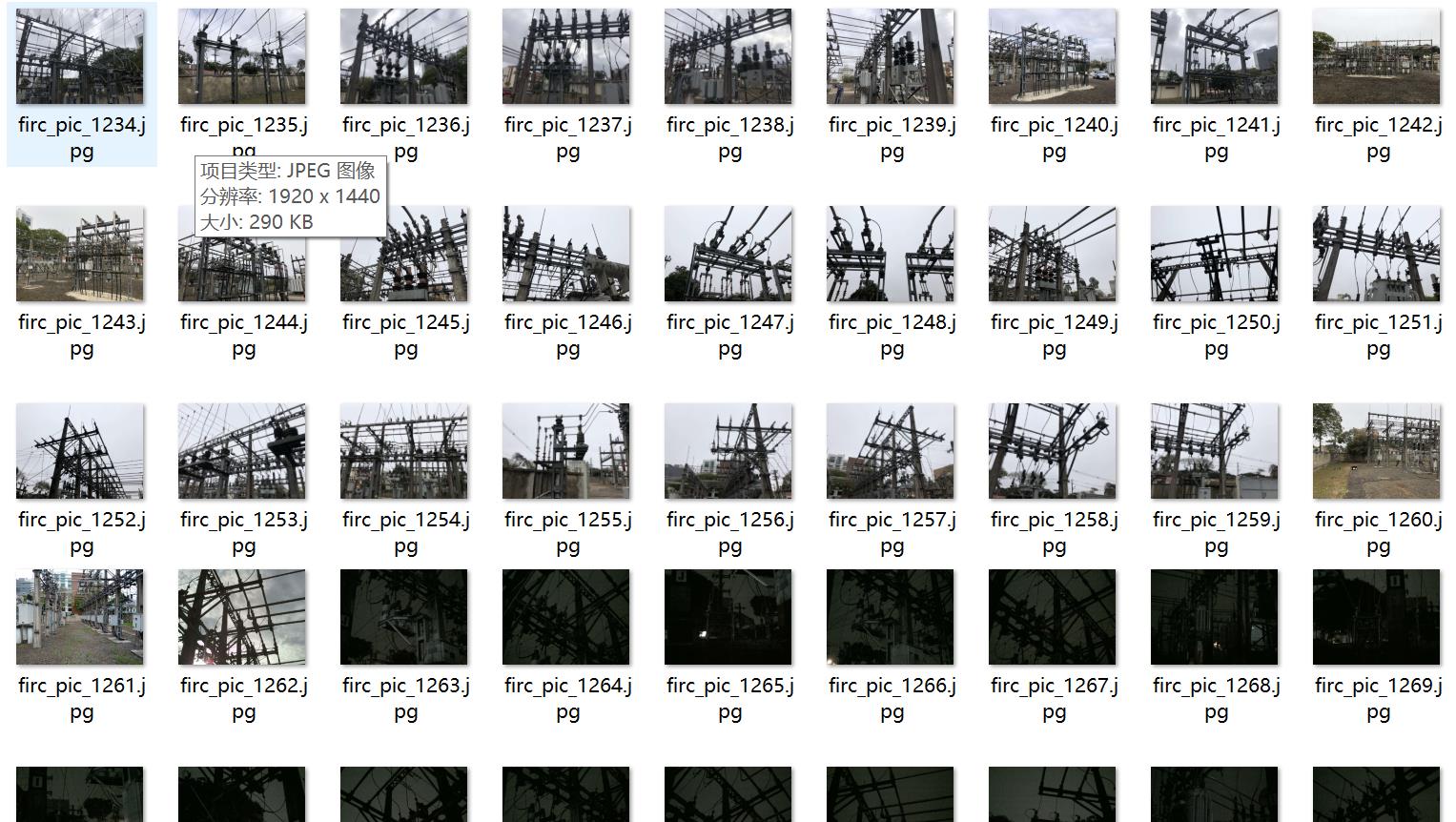

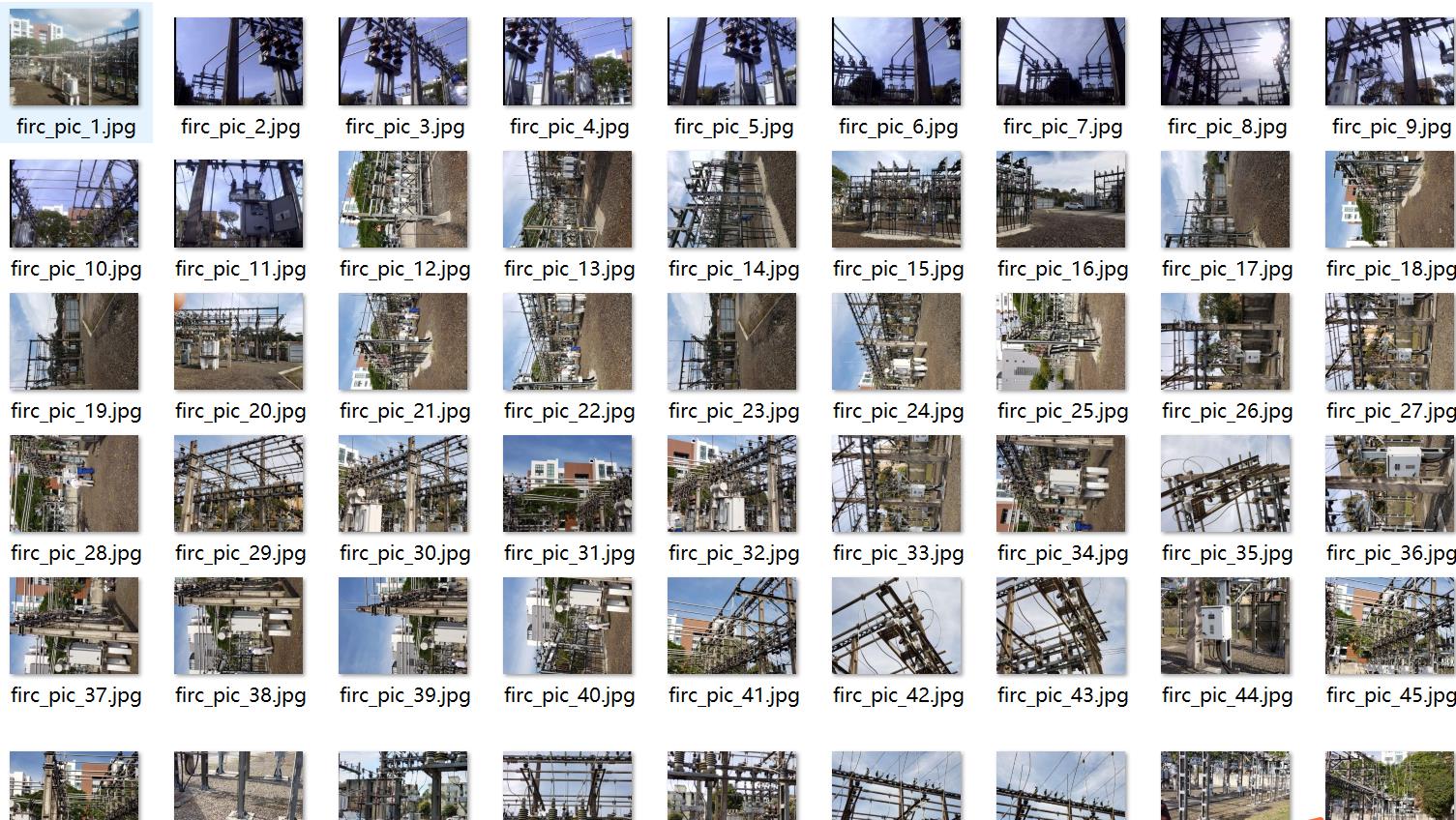

图片预览：
标注例子：

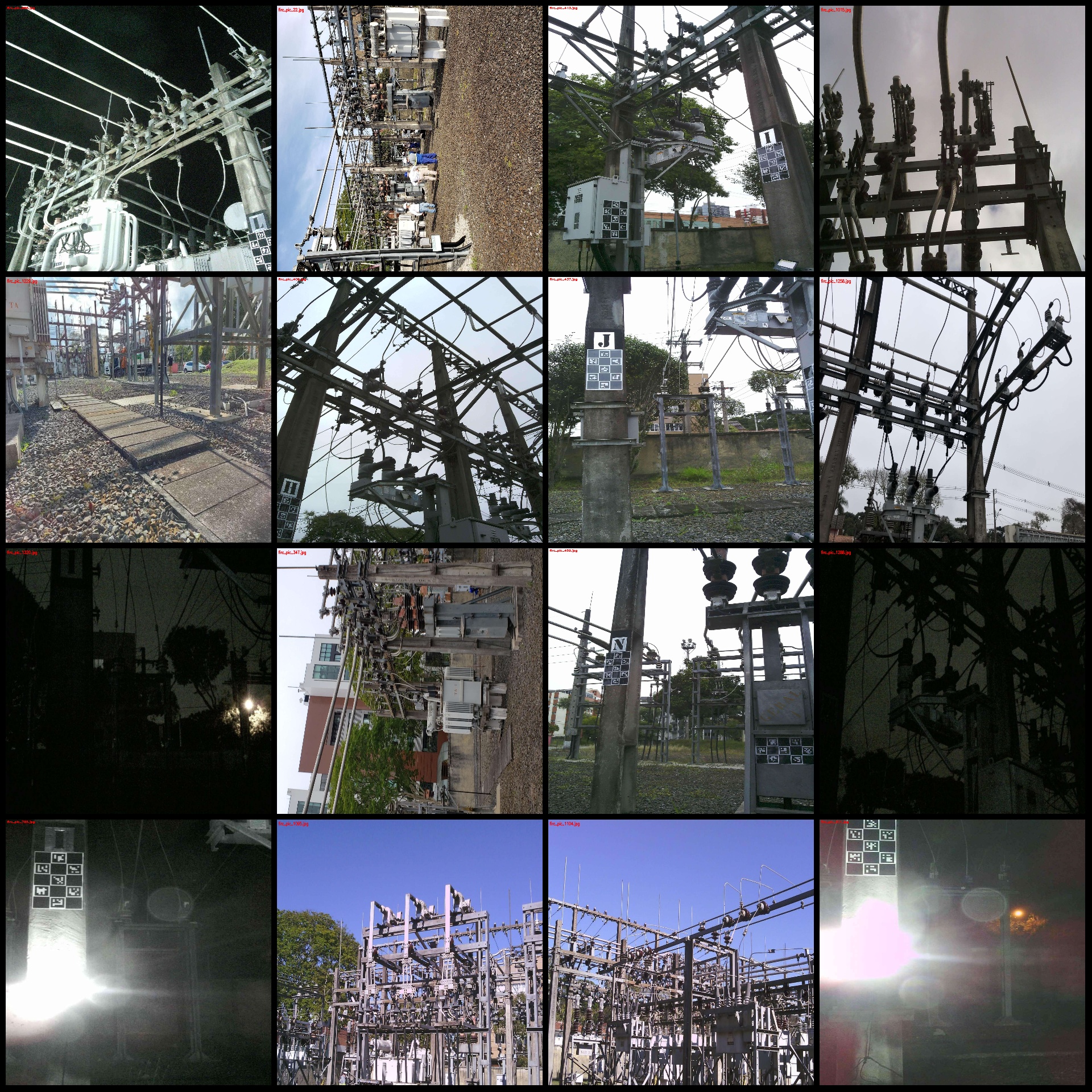

原图（随机选16张图）：

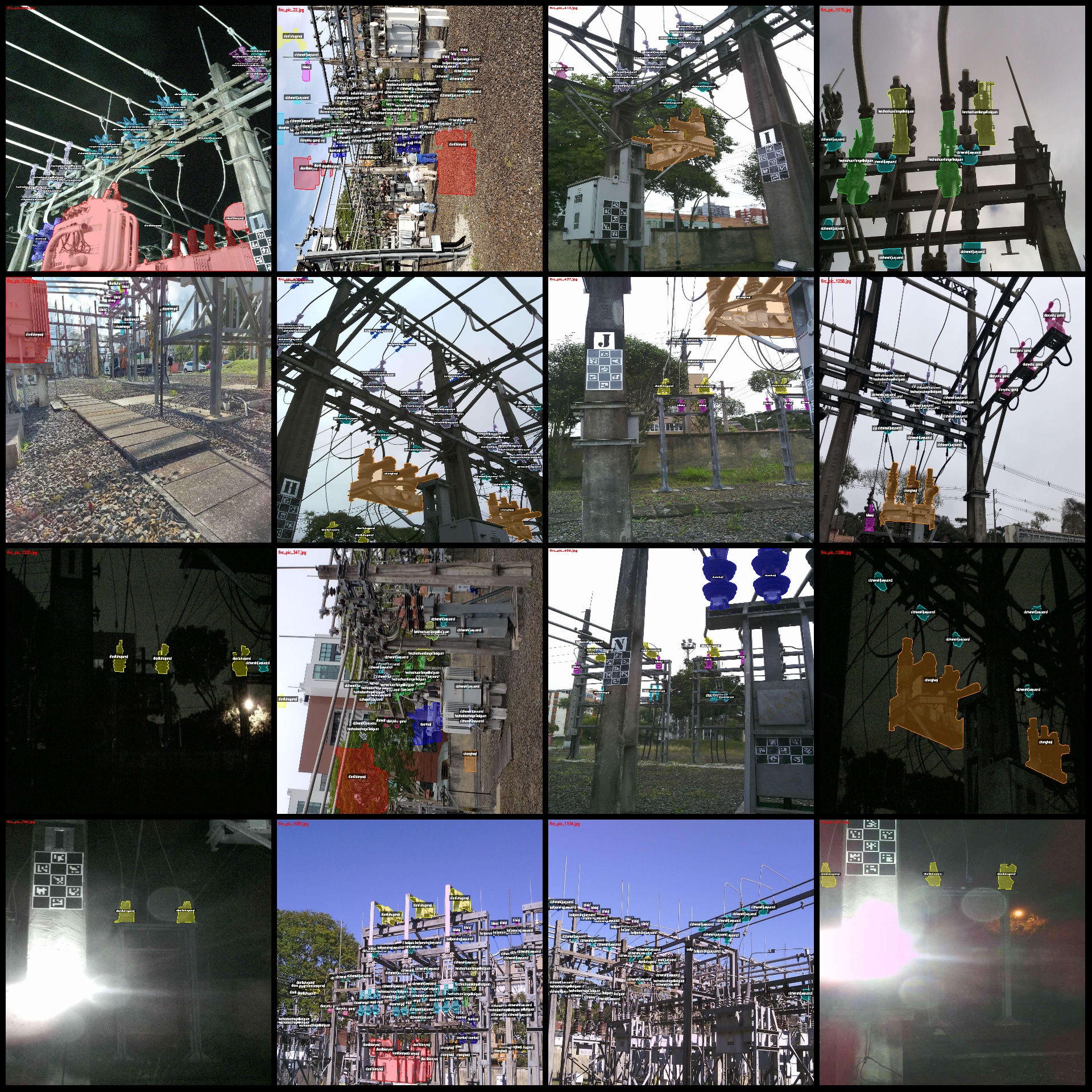

标注绘制结果：

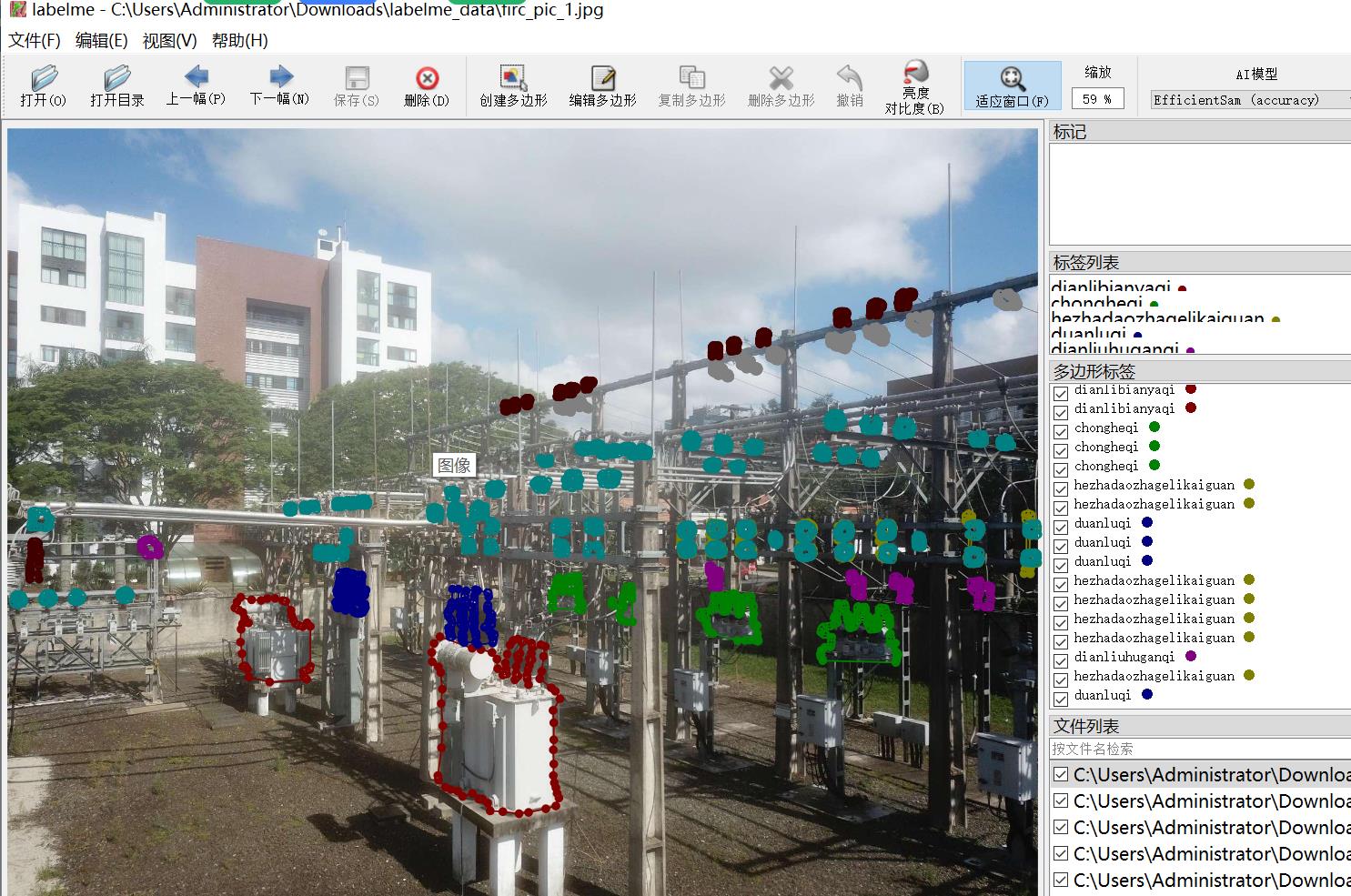

labelme编辑图实例：

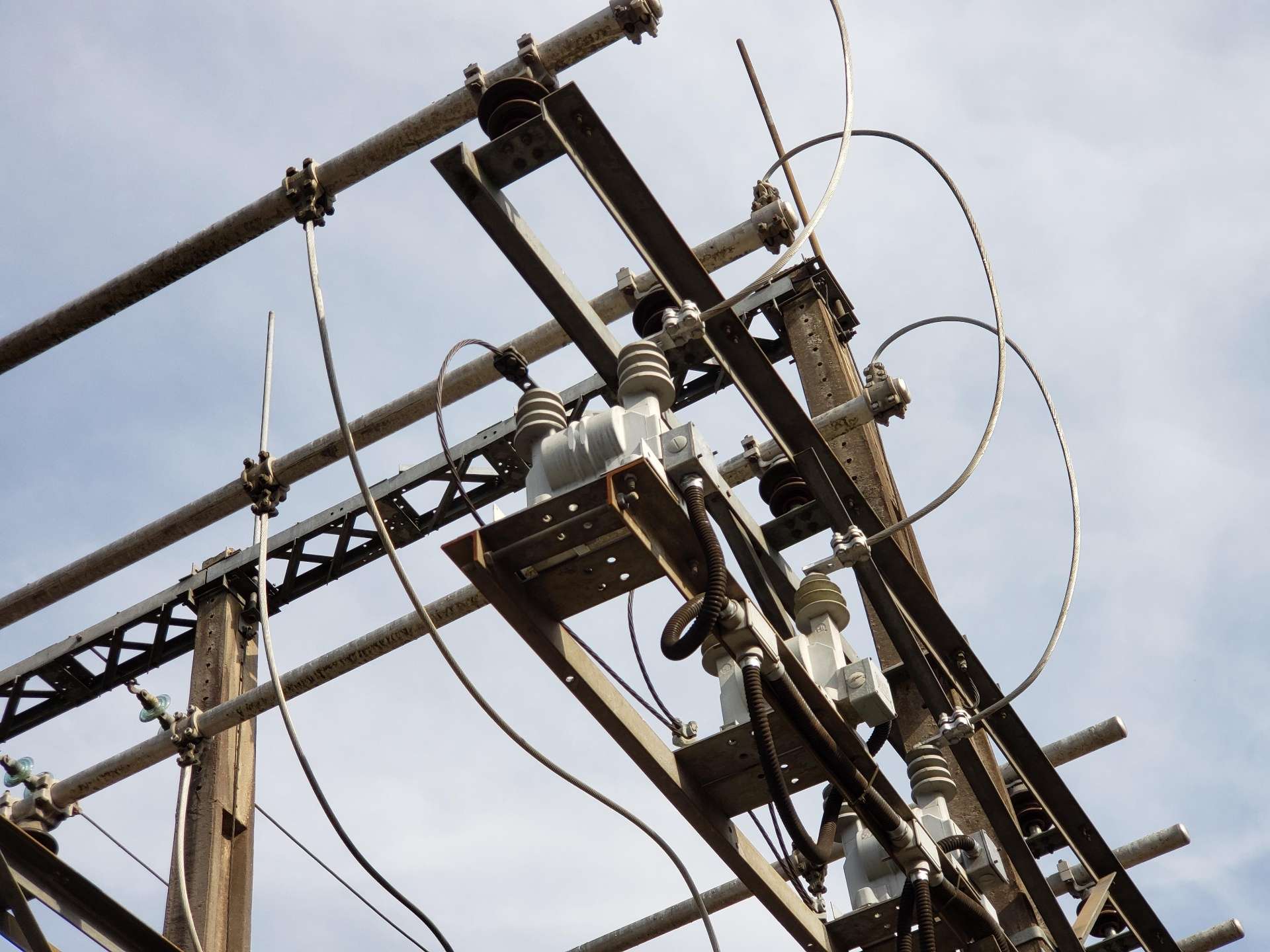

单张图片：
