压缩包大小1.59GB，文件提供百度云盘地址下载

数据集格式：Pascal VOC格式+YOLO格式(不包含分割路径的txt文件，仅仅包含jpg图片以及对应的VOC格式xml文件和yolo格式txt文件)

图片数量(jpg文件个数)：9400

标注数量(xml文件个数)：9400

标注数量(txt文件个数)：9400

标注类别数：32

所在github仓库：firc-dataset

标注类别名称(注意yolo格式类别顺序不和这个对应，而以labels文件夹classes.txt为准):["Bird-Nest","Broken-Damper-Stockbridge","Broken-Glass-Insulator","Broken-Lightning-Rod-suspension","Broken-Polymer-Insulator-Upper-Shackle","Broken-Vari-Grip","Broken-Yoke-Suspension","Cable","Connector","Fuse-Cutout-Open","Glass Insulator","Glass Insulator Big Shackle","Glass Insulator Small Shackle","Glass Insulator Tower Shackle","Lightning Rod Shackle","Lightning Rod Suspension","Polymer Insulator","Polymer Insulator Lower Shackle","Polymer Insulator Tower Shackle","Polymer Insulator Upper Shackle","Spacer","Sphere","Spiral Damper","Stockbridge Damper","Surge-Arrester","Tower","Tower-ID-Plate","Transformer","Vari-Grip","Yoke","Yoke Suspension","vegetation"]

每个类别标注的框数：

Bird-Nest (鸟巢) 框数 = 24

Broken-Damper-Stockbridge (防振锤损坏) 框数 = 1

Broken-Glass-Insulator (玻璃绝缘子破损) 框数 = 63

Broken-Lightning-Rod-suspension (避雷针悬吊装置破损) 框数 = 4

Broken-Polymer-Insulator-Upper-Shackle (复合绝缘子上挂板破损) 框数 = 15

Broken-Vari-Grip (V型线夹破损) 框数 = 21

Broken-Yoke-Suspension (联板悬吊装置破损) 框数 = 4

Cable (电缆) 框数 = 1

Connector (连接器) 框数 = 264

Fuse-Cutout-Open (熔断器断开) 框数 = 1

Glass Insulator (玻璃绝缘子) 框数 = 2960

Glass Insulator Big Shackle (玻璃绝缘子大挂板) 框数 = 258

Glass Insulator Small Shackle (玻璃绝缘子小挂板) 框数 = 250

Glass Insulator Tower Shackle (玻璃绝缘子塔架挂板) 框数 = 196

Lightning Rod Shackle (避雷针挂板) 框数 = 167

Lightning Rod Suspension (避雷针悬吊) 框数 = 629

Polymer Insulator (复合绝缘子) 框数 = 3099

Polymer Insulator Lower Shackle (复合绝缘子下挂板) 框数 = 1615

Polymer Insulator Tower Shackle (复合绝缘子塔架挂板) 框数 = 45

Polymer Insulator Upper Shackle (复合绝缘子上挂板) 框数 = 1533

Spacer (间隔棒) 框数 = 140

Sphere (均压环) 框数 = 31

Spiral Damper (螺旋式阻尼器) 框数 = 1083

Stockbridge Damper (防振锤) 框数 = 6996

Surge-Arrester (避雷器) 框数 = 1

Tower (铁塔) 框数 = 75

Tower-ID-Plate (塔号牌) 框数 = 228

Transformer (变压器) 框数 = 2

Vari-Grip (V型线夹) 框数 = 979

Yoke (联板) 框数 = 1747

Yoke Suspension (联板悬吊) 框数 = 6158

vegetation (植被) 框数 = 40

总框数：28630

图片分辨率：1920x1080

使用标注工具：labelImg

标注规则：对类别进行画矩形框

重要说明：暂无

特别声明：本数据集不对训练的模型或者权重文件精度作任何保证

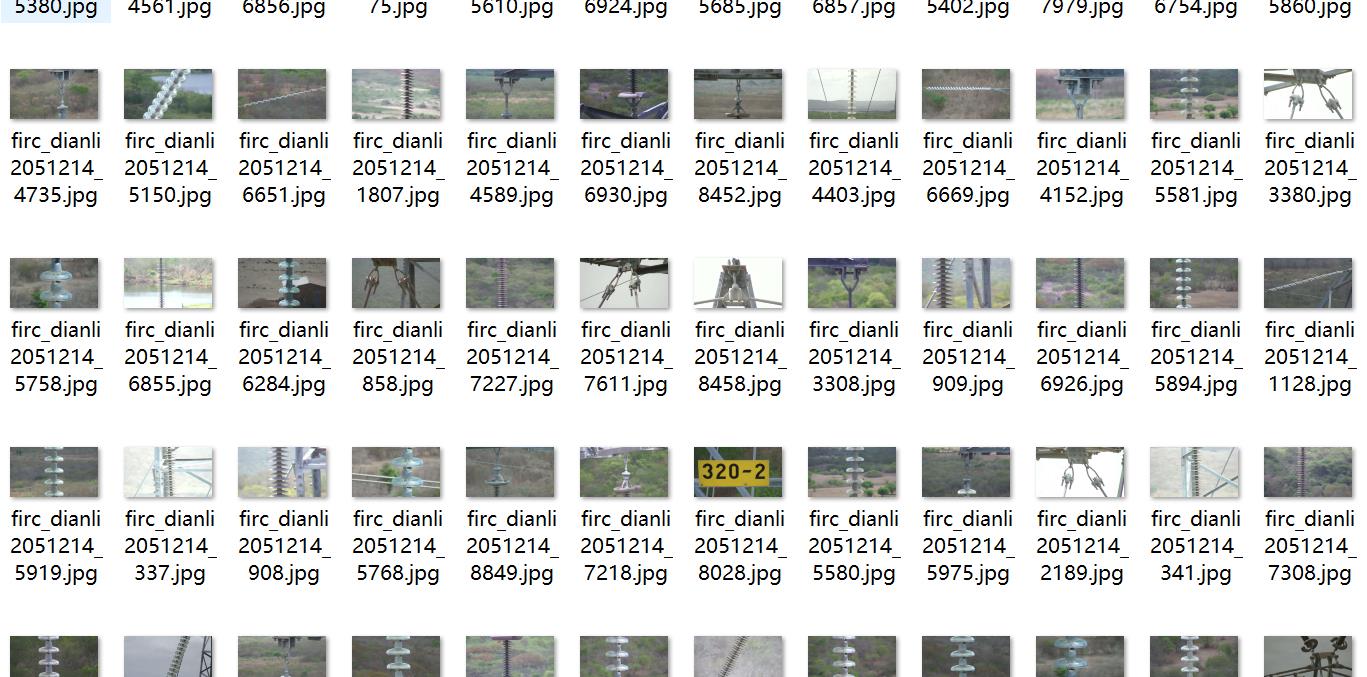

图片预览：

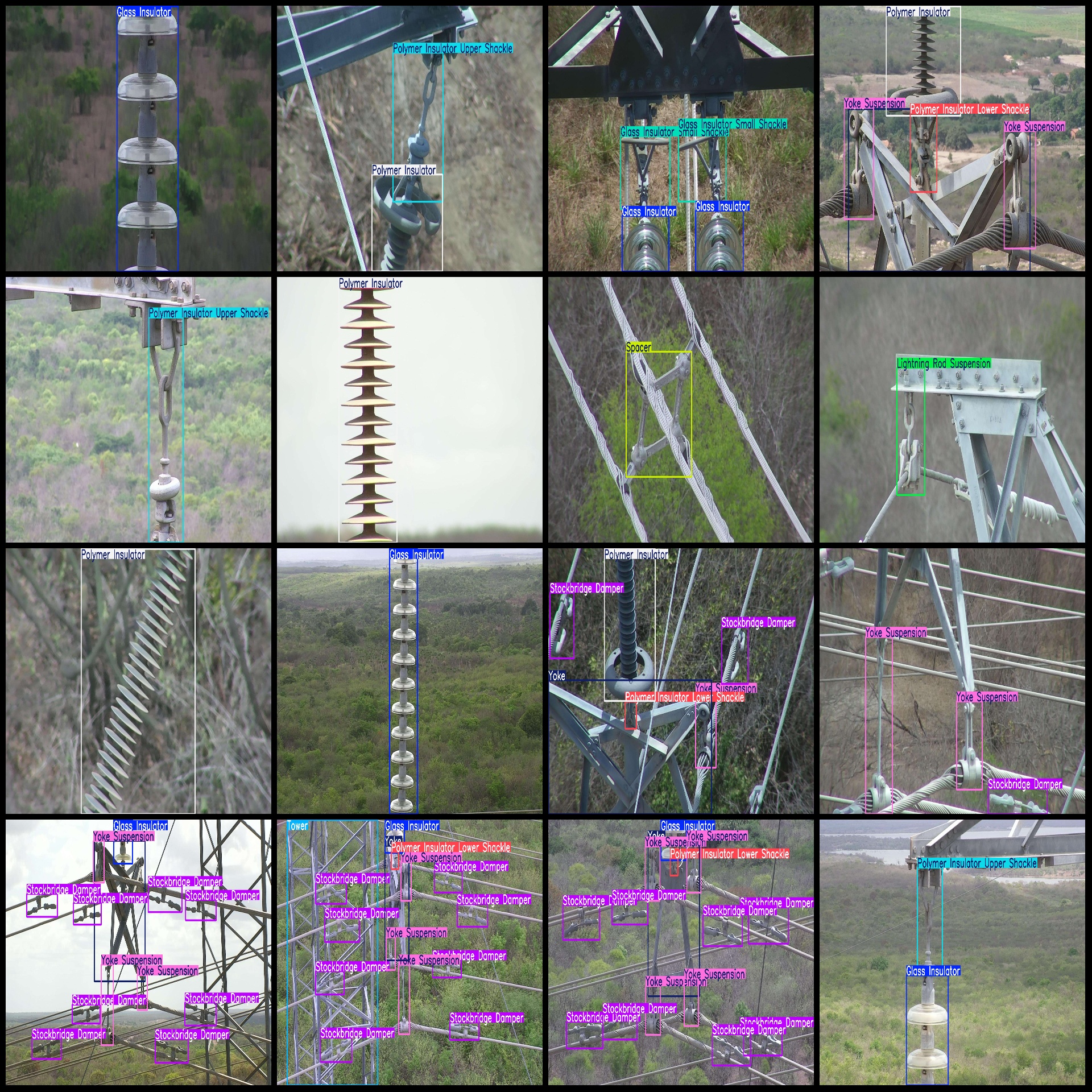

标注例子：
